Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming

Brand Name : KXD

Model Number : KXD-EQUIPMENT

Certification : CE, ISO 9001, ISO140001, ISO45001

Place of Origin : Qingdao

MOQ : 500 square meters

Price : 20-80 USD per sqm

Payment Terms : T/T,L/C

Supply Ability : 5000 Sets/Month

Delivery Time : 15-35days

Packaging Details : Steel Pallet Or In Bulk

Carbon Structural Steel : Q235b Q355B

Steel Type : Carbon Structural Steel

Customization : Available

Standard : ASTM, DIN, GB, JIS

Specification : Prefab steel buildings

Assembly Time : Short

Assembly : Prefabricated Components for Easy Installation

Design Options : Customizable

Walltype : Steel Wall Panels

Galvanization Type : Hot-dip galvanized

Mobility : Easy

Structure Type : H-type

Corrosion Resistance : Excellent

Rooftype : Steel Roof

Color : Customized

Connections : Bolts Connection

Steel Material : Q235b Q355B

Cage Size : 1050mm (W) × 800mm (D) × 420mm (H)

Tiers : 3-4 tiers

Voltage : 380V/50Hz or 220V/60Hz

Contact Now

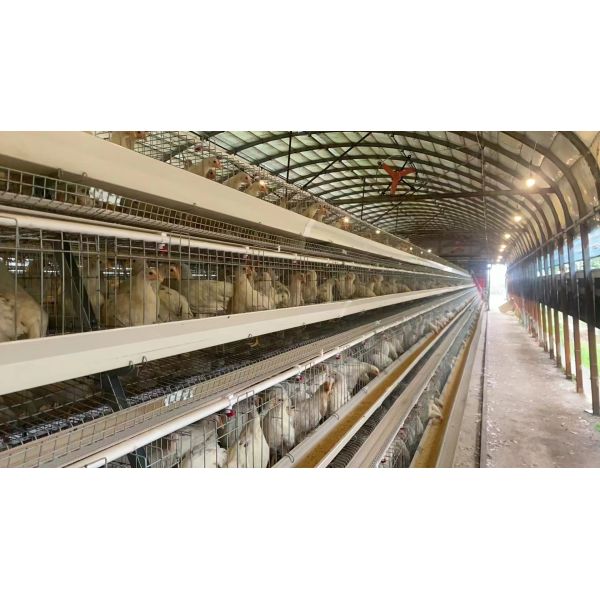

Full Automatic H Type Broiler Cage System Feeding Drinking Manure Cleaning
An Automatic Broiler Cage System is a fully integrated, high-density housing solution designed for commercial broiler farming. It automates the entire grow-out cycle (1-42 days), including feeding, drinking, manure removal, climate control, lighting, and even bird harvesting. Built with hot‑dip galvanized steel, it supports 3-4 tiers (H‑type) or 2 tiers (A‑type), maximizing space efficiency while improving bird health, feed conversion, and farm profitability.

Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming

Core Structure & Types
Main Types
  • H‑type (Vertical Stacked): 3-4 tiers, high density, full automation, ideal for large farms (30,000-100,000 birds)
  • A‑type (Triangle Frame): 2 tiers, lower cost, semi‑auto option, suitable for small‑to‑mid farms

Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming

Key Materials
  • Frame & Wire Mesh: Q235 steel, hot‑dip galvanized (zinc‑aluminum alloy), 15-20 years service life, anti‑corrosion, rust‑proof
  • Floor: PP plastic slats (flexible, non‑slip, reduces footpad lesions/breast blisters) or galvanized wire mesh
  • Manure Belt: 1.2mm PP or PVC, durable, easy to clean

Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming

Full Automation Components (All‑in‑One System)
Automatic Feeding System
  • Trolley Feeder: Hot‑galvanized hopper, 0.75kW motor, 8-10m/min, uniform distribution, reduces feed waste by 3-5%
  • Feed Trough: Hot‑galvanized steel, corrosion‑resistant, long service life
Automatic Drinking System
  • Nipple Drinkers: Stainless steel, pressure‑regulated, clean water, no spillage, keeps litter dry
  • Water Line: HDPE pipe, with filters and pressure gauges
Automatic Manure Removal System
  • Bottom Manure Belt: Continuous running, collects droppings, transports to house end, reduces ammonia and disease risk
  • Scraper: Cleans belt surface, ensures hygiene
Climate Control & Ventilation
  • Exhaust Fans: Hot‑galvanized frame, 430SS blades, high air volume, removes heat/ammonia
  • Cooling Pads: Evaporative cooling, lowers temp by 5-8°C in hot climates
  • Heaters: Gas/oil heaters for brooding (32-35°C for day‑old chicks)
  • Environment Controller: Monitors temp, humidity, ammonia; auto‑adjusts fans, pads, heaters
Automatic Lighting System
  • LED Lights: Dimmable, 16-23 hours light/day, promotes growth, saves energy
  • Timer: Auto on/off, simulates natural daylight
Automatic Harvesting System (Optional)
  • Pull‑out Slat Type: Cage floor slides out, birds fall onto manure belt, transported to collection table
  • Chain Type: Chain conveyor moves birds to house end, lifting system transfers outside
  • Speed: 6,000 birds/hour, reduces labor and bird injury
Core Advantages
  • High Space Utilization: 3-5× higher density than floor raising; 10,000-20,000 birds per house (100m×12m)
  • Superior Health & Hygiene: Manure‑bird separation, dry environment, lower ammonia, reduced coccidiosis/respiratory diseases; mortality rate <3%
  • Better Growth Performance: Uniform feed/water access, consistent climate; 42‑day weight ≥2.2kg, FCR ≤1.8
  • Labor Savings: 70-80% less labor; 1 worker manages 50,000 birds vs. 5,000 in floor systems
  • Cost Efficiency: Lower feed/medicine/labor costs; 30% energy savings vs. traditional systems
  • Welfare‑Friendly Design: Spacious cages, plastic slats, easy access to food/water; meets global welfare standards
Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming
Key Benefits
  • Faster Turnaround: Easy cleaning/disinfection, 6-7 batches/year vs. 4-5 in floor systems
  • Consistent Quality: Uniform growth, less weight variation, higher‑grade meat
  • Lower Environmental Impact: Less litter waste, manure can be processed into fertilizer
  • Scalable & Customizable: Modular design, expandable from 10,000 to 100,000 birds; adaptable to climate/space
Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming
Applications
  • Commercial Broiler Farms: 10,000-1,000,000 birds, full‑cycle production
  • Integrated Poultry Complexes: Hatchery → Brooder → Grow‑out → Processing
  • Climate‑Challenged Regions: Hot (Africa/Middle East) or cold areas (insulated houses + climate control)
  • Export‑Oriented Farms: Meets EU/US welfare and hygiene standards
Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming
Technical Specifications (Standard H‑type)
Cage Size 1050mm (W) × 800mm (D) × 420mm (H) per compartment
Tiers 3-4 tiers; Rows: 3-5 rows per house
Capacity 8-12 birds per compartment (100-120 cm²/bird)
Voltage 380V/50Hz or 220V/60Hz (customizable)
Certifications ISO 9001, CE, SONCAP
Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming
Why It's Ideal for Africa
  • Climate Adaptation: High‑volume fans + cooling pads for hot/humid conditions; corrosion‑resistant galvanized steel for coastal areas
  • Labor Shortage Solution: Full automation reduces reliance on scarce skilled labor
  • Cost‑Effective: Lower operational costs, faster ROI (2-3 years)
  • High Production: Maximizes output per m², critical for land‑constrained regions
Full Automatic H Type Broiler Cage System with Hot-Dip Galvanized Steel for High-Density Poultry Farming
One‑Stop Solution from KXD
We provide turnkey projects including:
  • Customized house design (steel structure + insulation)
  • Full automatic cage system manufacturing
  • Installation, commissioning, and worker training
  • After‑sales service (spare parts + technical support)
