Low Cost Self New Designed High Quality Automatic Poultry Equipment
Poultry farm equipment for broilers
System Components Overview
| No.1 |
Main feed line system |
| No.2 |
Automatic pan feeding system |
| No.3 |
Automatic nipple drinking system |
| No.4 |
Ventilation system |
| No.5 |
Cooling pad system |
| No.6 |
Environment system |
| No.7 |
Fogging system |
| No.8 |
Heating system |
No.1: Automatic Main Feed Line System
Silo/manpower hopper is the beginning part of main feed line system. There is a feed sensor at the end of main feed line which controls the motor on and off to achieve automatic feed delivery.
Silo Specifications
| Size |
3T, 5T, 8T, 10T, 12T, 14T, 15T, 16T, 18T, 20T |
| Material |
Hot-dip galvanized steel sheet, with zinc coating amount of 275g/m² |
Manpower Hopper
| Size |
600Kg, 800Kg |
| Material |
Hot-dip galvanized sheet |
Driving Motor
| Power |
0.75Kw |
| Voltage |
380V/220V |
| Frequency |
Three-phase/Single-phase |
Feed Conveying Pipe
| Diameter of conveying pipe |
75*3.6mm |
| Material |
PVC |
| Helical spring auger |
Imported from South Africa |
| Feeding ability |
1400Kg/h |
| Conveying length |
60m |
| Radius of bending pipe |
R1500-2000 |
Feed Level Sensor
Brand: Germany IFM feed level sensor

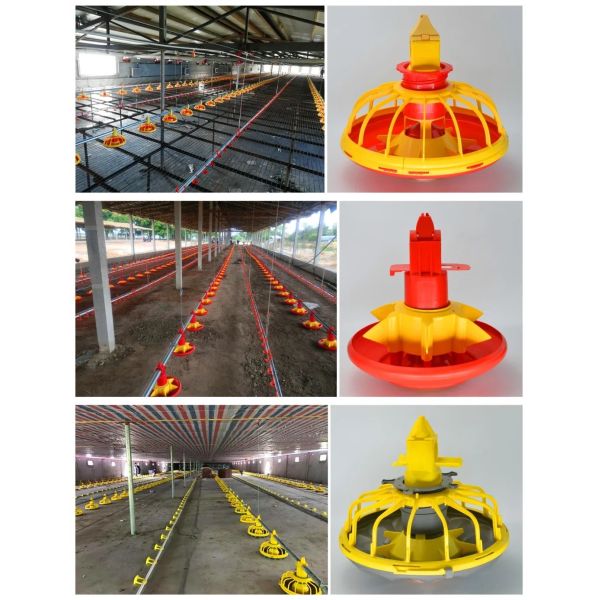

No.2: Automatic Pan Feeding System
There is a feed sensor at the end of each feeding line which controls motor on and off to achieve automatic feed delivery.
Driving Motor
| Brand |
Taiwan brand |
| Power |
0.7KW/1.1KW/1.5KW |
| Voltage |
380V/220V |
| Frequency |
Three-phase/single-phase |
Vice Hopper
| Size |
70Kg/90Kg |
| Material |
Hot-dip galvanized sheet, thickness: 1mm |
Pan Feeding Lines
| Conveying pipe |
Holes: 4 pans/3m, 3 pans/3m
Diameter: 45mm
Material: galvanized steel pipe, zinc coating amount: 275g/m², thickness: 1.2mm |
| Feed pan |
Material: pure engineering plastic
Grille: 14 grilles/16 grilles
Weight: 580g/pc
Color: Orange, Red, Yellow
Raising ability: 50~55 broilers/pc |
| Spring auger |
Imported from South Africa
Diameter: 36mm |
| Feeding ability |
400Kg/h |
Feed Sensor
Brand: Germany IFM feed level sensor (time delay range: 0-2 hours)
Suspension & Lifting System
The height of feed pan is very important for chicken growing. It's very convenient to adjust the feeding line height by winch. The best height of feeding line: chicken back height and feed pan up grill should be at the same level.
Anti-perching System
It prevents chicken from staying on the feeding line for too long.

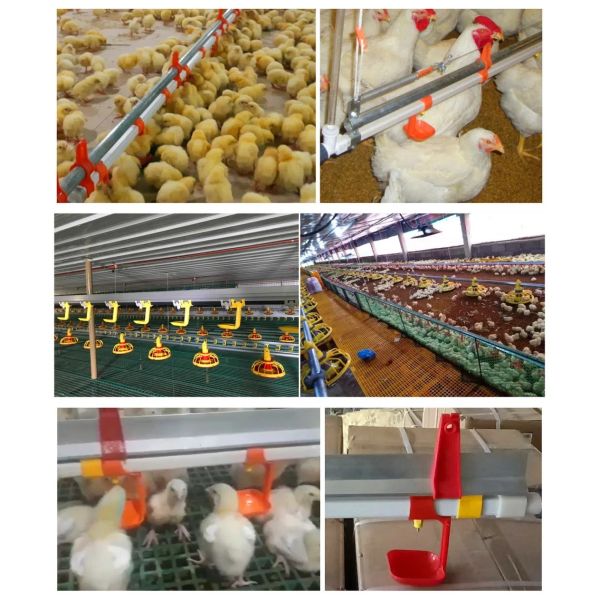

No.3: Automatic Nipple Drinking System
The system provides fresh water for broiler chicken, which is vital to the healthy growth of birds. Water will flow out from 360 degrees when the chickens touch the nipples.
Waterline Front System
- Pressure regulator: Ensures stable water supply to drinking line, anti-backlash device can discharge the impurity in pipe
- Filter: Cleans water and avoids blocking nipples
- Water meter: Measures water usage volume
- Doser: Adds medicine into water source automatically to prevent disease, France Dosatron brand
Nipple Drinking Lines
| Nipple drinker |
Nipple:
Material: the inner valve rod is made of stainless steel, the outside shell is made of plastic
Valve rod is movable in 360 degrees
Raising ability: 8~12 broilers/pc
Drip cup:
Material: pure engineering plastic
Color: Orange, Red, Yellow |
| Water pipe |
Holes: 15 nipples/3m, 12 nipples/3m
Diameter: 22mm
Material: PVC |
| Galvanized supporting tube |
Diameter: 25mm
Material: hot-dip galvanized steel pipe |
Pressure Regulator Features
- Double barreled with large flow capacity
- Good regulating stability and high switching performance
- Recoil cleaning with good cleaning result, saves time and water
No.4: Ventilation System
The exhaust fan-cooling pad way is the most economical and effective way to reduce temperature of chicken house.

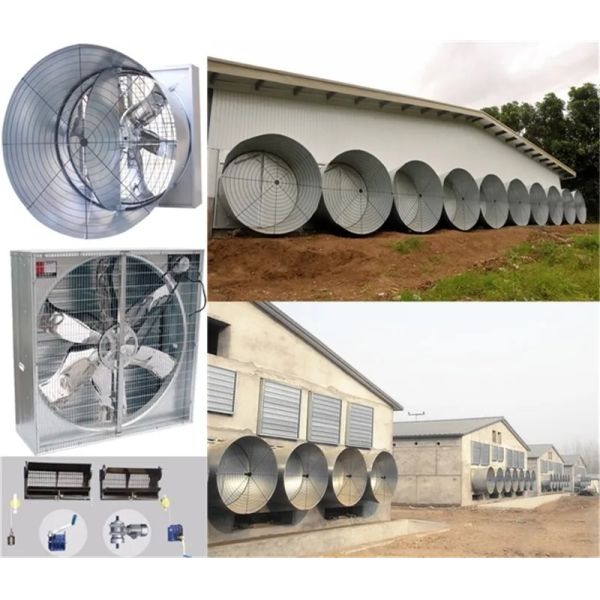

Exhaust Fans
Centrifugal push-pull type exhaust fans, swung drop hammer exhaust fans, cone fans, butterfly cone fans.
Fan Specifications
| Specifications |
50" butterfly cone fan |
50" axial flow box fan |
36" axial flow box fan |
| Flow amount (m³/h) |
51020 |
43170 |
20800 |
| Size (L*W*H) (mm) |
1380*1380*1360 |
1380*1380*450 |
1000*1000*450 |
| Noise level (db) |
≤65 |
≤65 |
≤64 |
| Power (Kw) |
1.1 |
1.1 |
0.4 |
| Voltage (V) |
380/220/others |
380/220/others |
380/220/others |
| Current (A) |
2.8 |
2.8 |
1.25 |
| Weight (Kg) |
100 |
89 |
54 |
Air Inlets
- Manual control: Operator will check the pressure of chicken house, control the winches by hand until meet requirements
- Automatic control: The T616 environment controller is connected to one static pressure sensor, air inlet windows will be on/off automatically by pressure

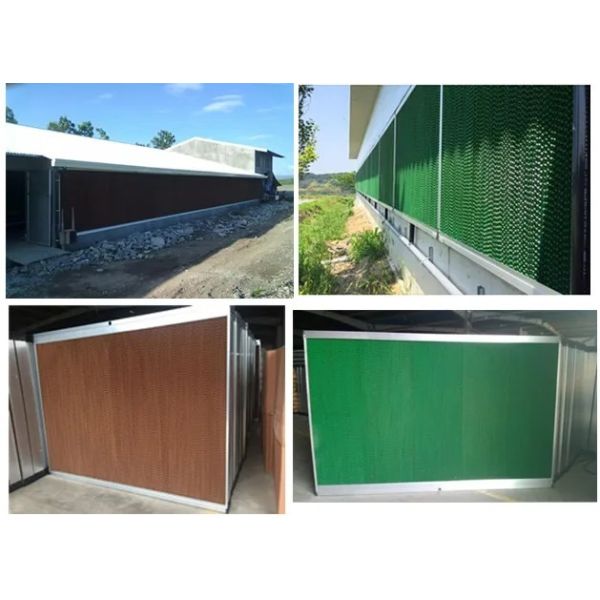

No.5: Cooling Pad System
When the air goes through the pad, the heat will be taken down by the evaporation of water, so the air will be cooled before going into the shed.
| Thickness |
100mm, 150mm |
| Width |
300mm, 600mm |
| Height (with frame) |
1660mm, 1960mm, 2160mm |
| Height (without frame) |
1500mm, 1800mm, 2000mm |
| Frame |
Galvanized sheet frame or Aluminum alloy frame |

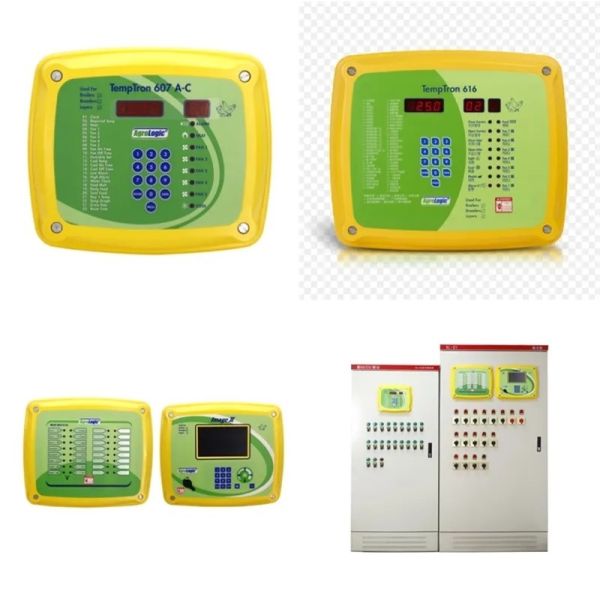

No.6: Environment Control System
The system can control the temperature in chicken house by controlling ventilation fans, cooling pads, air inlets and heaters automatically, also control the water, feed and light.
- Environment controller: We have Israel imported controller and domestic brand controller for your choice, they have different functions and different prices
- Temperature sensor and humidity sensor
- Control boxes
- Light system and wire system
No.7: Fogging System
It's effective tool for cooling, damping, dedusting and disinfecting the house. It can reduce the temperature by 3~8°C within 3 minutes. The system including main engine with filters, copper pipes, nylon pipes and nozzles.
Characteristics
- Instant cooling but not wet
- Large flow, high pressure, good atomization, and corrosion resistance
- Increase the humidity to the preset range according to the requirements - 60 to 70 percent of the maximum relative humidity
- Effectively prevent the dust, reduce respiratory decrease of livestock and poultry
- Disinfect with chickens
No.8: Heating System
Proper temperature is critical to chickens, especially day-old chicks. We have different kinds of heaters for your choice, they fire coal, diesel, gas or use electricity. We also provide professional brood heating tools - gas brooders.
